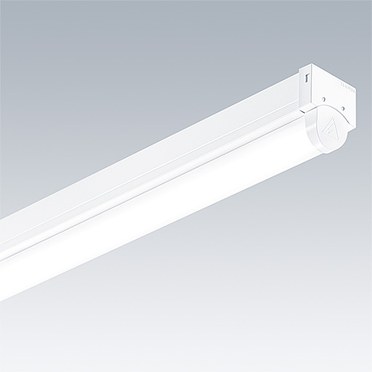

PopPack
Reglette a LED ad alta efficienza con versioni dimmerabili ed in emergenza
- LED per sostituzione diretta delle reglette fluorescenti mono e bilampada con T8/T5
- Fino a 153lm/W - oltre i normali requisiti normativi
- Si possono aggiungere viti opzionali alle testate di chiusura per bloccare il corpo e garantire maggior sicurezza
- Ulteriori risparmi con la versione dimmerabile DALI e sensore PIR integrato.
- Versions adapted for mounting onto Contus trunking available.
Materiali
Batten: pre-coated roll form steel, white (RAL9016)
End caps/lamp holders: injection moulded polycarbonate, white
Diffuser: textured opal acrylic
Contus adapter: pre-coated roll form steel, white (similar to RAL9016)
Installazione e Montaggio
1 or 2 x (3 x 2 x 2.5mm²) terminal blocks with capacity for loop in/out 2.5mm² cables. Ambient temperature: -20 to +25°C for the standard product, 0 to 25°C for the emergency versions, normal, dry, indoor atmospheres. Suitable for direct surface mounting, BESA mounting or wire suspension. Easy alignment through slots in the spine. Optional screws can be added to end caps to lock the housing.
Versions adapted for Contus trunking come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.
Specifiche
Ulteriori specifiche sono disponibili tramite il referente THORN di zona o compilando il modulo di contatto (http://www.thornlighting.it/it-it/contact-us)
▼ PopPack reglette
Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
POPPACK LED 11000-840 HF L1800 | 74 | 10900 | LED | 1.80 | 96631570 | ||||
POPPACK LED 1700-840 HF L600 | 11 | 1700 | LED | 0.74 | 96634320 | ||||
POPPACK LED 2300-840 HF L600 | 17 | 2300 | LED | 0.74 | 96634321 | ||||
POPPACK LED 3000-830 HF L1200 | 24 | 3200 | LED | 1.40 | 96631574 | ||||
POPPACK LED 3000-840 HF L1200 | 24 | 3350 | LED | 1.30 | 96631538 | ||||
POPPACK LED 4500-830 HF L1200 | 36 | 4450 | LED | 1.40 | 96631575 | ||||
POPPACK LED 4500-840 HF L1200 | 36 | 4650 | LED | 1.40 | 96631542 | ||||
POPPACK LED 5000-830 HF L1500 | 36 | 4700 | LED | 1.70 | 96631578 | ||||
POPPACK LED 5000-840 HF L1500 | 36 | 4900 | LED | 1.70 | 96631554 | ||||
POPPACK LED 6000-830 HF L1500 | 53 | 6050 | LED | 1.70 | 96631579 | ||||
POPPACK LED 6000-840 HF L1500 | 53 | 6400 | LED | 1.70 | 96631558 | ||||
POPPACK LED 6500-830 HF L1800 | 54 | 6450 | LED | 1.80 | 96631580 | ||||
POPPACK LED 6500-840 HF L1800 | 54 | 6800 | LED | 1.80 | 96631566 | ||||
POPPACK LED 7000-830 HF L1200 | 52 | 6900 | LED | 1.40 | 96631576 | ||||
POPPACK LED 7000-840 HF L1200 | 52 | 7300 | LED | 1.40 | 96631546 | ||||
POPPACK LED 9000-840 HF L1500 | 64 | 9100 | LED | 1.70 | 96631562 |
▼ PopPack reglette, dimmerabile
Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
POPPACK LED 11000-840 HFI L1800 | 74 | 10900 | LED | 1.80 | 96631572 | ||||
POPPACK LED 1700-840 HFI L600 | 11 | 1700 | LED | 0.83 | 96634322 | ||||
POPPACK LED 2300-840 HFI L600 | 17 | 2300 | LED | 0.83 | 96634323 | ||||
POPPACK LED 3000-840 HFI L1200 | 24 | 3350 | LED | 1.40 | 96631540 | ||||
POPPACK LED 4500-840 HFI L1200 | 36 | 4650 | LED | 1.40 | 96631544 | ||||
POPPACK LED 5000-840 HFI L1500 | 36 | 4900 | LED | 1.70 | 96631556 | ||||
POPPACK LED 6000-840 HFI L1500 | 53 | 6400 | LED | 1.70 | 96631560 | ||||
POPPACK LED 6500-840 HFI L1800 | 54 | 6800 | LED | 1.80 | 96631568 | ||||
POPPACK LED 7000-840 HFI L1200 | 52 | 7300 | LED | 1.40 | 96631548 | ||||
POPPACK LED 9000-840 HFI L1500 | 64 | 9100 | LED | 1.70 | 96631564 |
▼ PopPack reglette, emergenza
Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
POPPACK LED 11000-840 HF E3 L1800 | 74 | 10900 | LED | 2.50 | 96631571 | ||||
POPPACK LED 3000-840 HF E3 L1200 | 24 | 3350 | LED | 2.00 | 96631539 | ||||
POPPACK LED 4500-840 HF E3 L1200 | 36 | 4650 | LED | 2.00 | 96631543 | ||||
POPPACK LED 5000-840 HF E3 L1500 | 36 | 4900 | LED | 2.30 | 96631555 | ||||
POPPACK LED 6000-840 HF E3 L1500 | 53 | 6400 | LED | 2.30 | 96631559 | ||||
POPPACK LED 6500-840 HF E3 L1800 | 54 | 6800 | LED | 2.50 | 96631567 | ||||
POPPACK LED 7000-840 HF E3 L1200 | 52 | 7300 | LED | 2.00 | 96631547 | ||||
POPPACK LED 9000-840 HF E3 L1500 | 64 | 9100 | LED | 2.30 | 96631563 |
▼ PopPack reglette, dimmerabile, emergenza
Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
POPPACK LED 11000-840 HFI E3 L1800 | 74 | 10900 | LED | 2.50 | 96631573 | ||||
POPPACK LED 3000-840 HFI E3 L1200 | 24 | 3350 | LED | 2.00 | 96631541 | ||||
POPPACK LED 4500-840 HFI E3 L1200 | 36 | 4650 | LED | 2.00 | 96631545 | ||||
POPPACK LED 5000-840 HFI E3 L1500 | 36 | 4900 | LED | 2.30 | 96631557 | ||||
POPPACK LED 6000-840 HFI E3 L1500 | 53 | 6400 | LED | 2.30 | 96631561 | ||||
POPPACK LED 6500-840 HFI E3 L1800 | 54 | 6800 | LED | 2.50 | 96631569 | ||||
POPPACK LED 7000-840 HFI E3 L1200 | 52 | 7300 | LED | 2.00 | 96631549 | ||||
POPPACK LED 9000-840 HFI E3 L1500 | 64 | 9100 | LED | 2.30 | 96631565 |
▼ PopPack reglette con sensore
Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
POPPACK LED 11000-840 PIR L1800 | 74 | 10900 | LED | 1.80 | 96631589 | ||||
POPPACK LED 3000-840 PIR L1200 | 24 | 3350 | LED | 1.40 | 96631581 | ||||
POPPACK LED 4500-840 PIR L1200 | 36 | 4650 | LED | 1.40 | 96631582 | ||||
POPPACK LED 5000-840 PIR L1500 | 36 | 4900 | LED | 1.70 | 96631585 | ||||
POPPACK LED 6000-840 PIR L1500 | 53 | 6400 | LED | 1.70 | 96631586 | ||||
POPPACK LED 6500-840 PIR L1800 | 54 | 6800 | LED | 1.80 | 96631588 | ||||
POPPACK LED 7000-840 PIR L1200 | 52 | 7300 | LED | 1.40 | 96631583 | ||||
POPPACK LED 9000-840 PIR L1500 | 64 | 9100 | LED | 1.70 | 96631587 |
▼ PopPack Accessori
Descrizione | Peso (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
POPPACK LED GROMMET KIT | 0.04 | 59010377 | |||||||
POPPACK LED SCREW KIT x100 | 0.08 | 59010829 | |||||||
POPPACK LED SCREW KIT x20 | 0.06 | 59010828 | |||||||
POPPACK LED WIRE GUARD 1,2M | 0.69 | 96627902 | |||||||
POPPACK LED WIRE GUARD 1,5m | 0.74 | 96628147 | |||||||
POPPACK LED WIRE GUARD 1,8M | 1.04 | 96627903 | |||||||
POPPACK LED WIRE SUSPENSION KIT 2M | 0.25 | 96627711 | |||||||
SWITCHLITE CC PROGRAMMER | 0.02 | 96240295 |
