  • Cesar Strut — CESAR STRUT H3500 1L930 S/S HFX ANT

Cesar Strut / CESAR STRUT H3500 1L930 S/S HFX ANT

96700285

▼ Datasheet

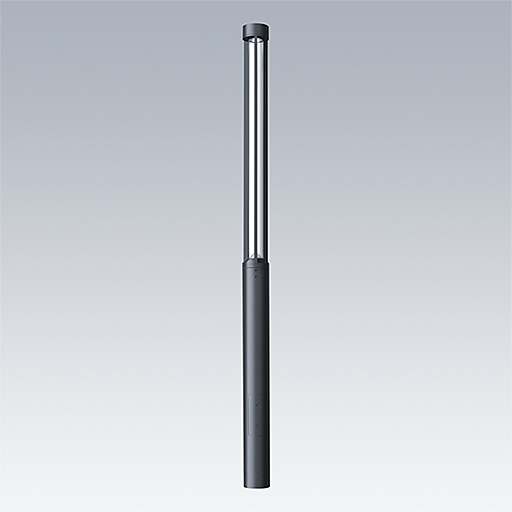

Cesar Strut a free-standing, architectural LED luminaire for decorative facade lighting, Symmetric super-narrow distribution luminaire (superspot beam) distribution. DALI-2 dimmable LED driver. Class II electrical, IP65, Impact strength: IK10. Housing: Die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Dimensions: Ø200 x 3500 mm
Luminaire input power: 55 W
Luminaire luminous flux: 4235 lm
Luminaire efficacy: 77 lm/W
Weight: 31.28 kg

Seleziona modalità
    • CE
    • IK10
    • IP65
    • SC2

    ▼ Fotometria

    Configurazione fotometrica
