  • Axyl Trim — AXYL TRIM L PERF 6L927 A/S HF ANT

Axyl Trim / AXYL TRIM L PERF 6L927 A/S HF ANT

96700294

▼ Datasheet

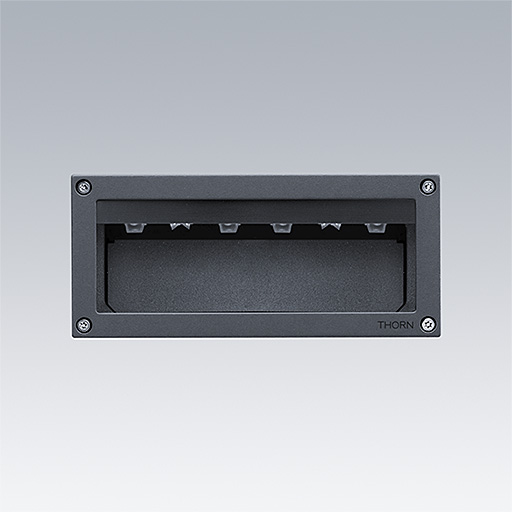

Axyl Trim, performance facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. Recessed box 96700290 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED. Recessed box 96700290 to be order separately.

Dimensions: 230 x 102 x 95 mm
Luminaire input power: 11.8 W
Luminaire luminous flux: 408 lm
Luminaire efficacy: 35 lm/W
Weight: 1.48 kg

Seleziona modalità
    • CE
    • IK06
    • IP65
    • Protection Class 1

    ▼ Fotometria

    Configurazione fotometrica

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Passo 1: Dati tecnici
    (lm)
    (m)
    (m)
    (%)
    Passo 2: Dati sullo spazio
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
