  • Axyl Trim — AXYL TRIM S OPAL 1L930 S/S RD BK

Axyl Trim / AXYL TRIM S OPAL 1L930 S/S RD BK

96701425

▼ Datasheet

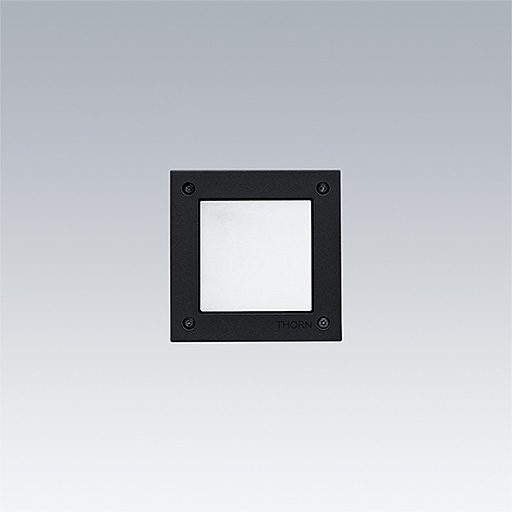

Axyl Trim, opal facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with symmetric distribution. Class III electrical.. DALI-2 dimmable Remote LED driver. Recessed box 96700399 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +50°C. Complete with 3000K LED. Recessed box 96700399 to be order separately.

Dimensions: 106 x 106 x 98 mm
Luminaire input power: 3.4 W
Luminaire luminous flux: 97 lm
Luminaire efficacy: 29 lm/W
Weight: 0.6 kg

Seleziona modalità
    • CE
    • IK06
    • IP65
    • SC3

    ▼ Fotometria

    Configurazione fotometrica
