  • Axyl Trim — AXYL TRIM L GRID 6L930 A/S HF WH

Axyl Trim / AXYL TRIM L GRID 6L930 A/S HF WH

96700323

▼ Datasheet

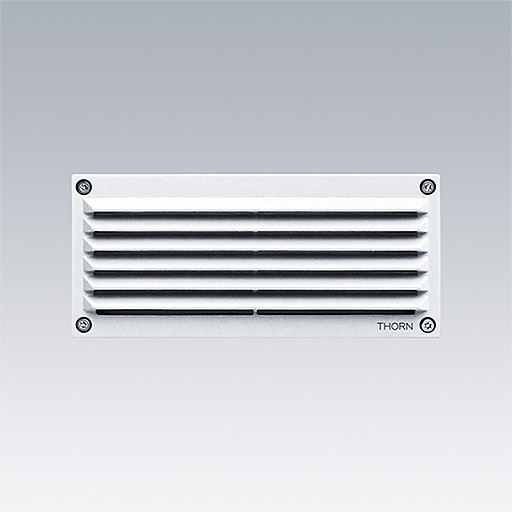

Axyl Trim, grid facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. Recessed box 96700290 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 3000K LED. Recessed box 96700290 to be order separately.

Dimensions: 230 x 102 x 95 mm
Luminaire input power: 10.9 W
Luminaire luminous flux: 128 lm
Luminaire efficacy: 12 lm/W
Weight: 1.36 kg

Seleziona modalità
    • CE
    • IK06
    • IP65
    • Protection Class 1
