  • Axyl Opera — AXYL OPERA L WO 3L RGBW WB PWM SS

Axyl Opera / AXYL OPERA L WO 3L RGBW WB PWM SS

96701171

▼ Datasheet

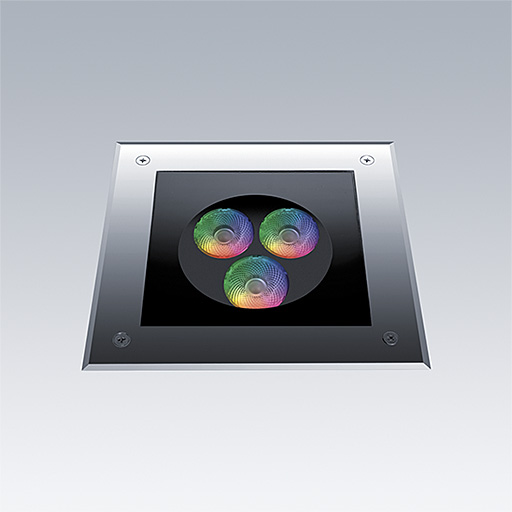

Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. fixed output control gear LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +40°C...

Dimensions: 200 x 200 x 135 mm
Luminaire input power: 15 W
Luminaire luminous flux: 467 lm
Luminaire efficacy: 31 lm/W
Weight: 3.99 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • SC3

    ▼ Fotometria

    Configurazione fotometrica
