  • Axyl Opera — AXYL OPERA M WO 4L 940 NB RD SS

Axyl Opera / AXYL OPERA M WO 4L 940 NB RD SS

96701870

▼ Datasheet

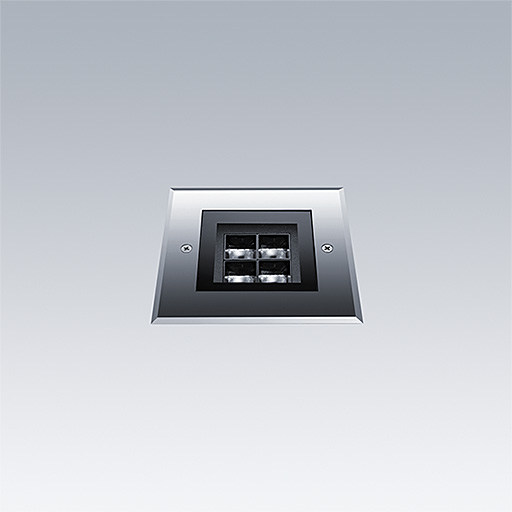

Axyl Opera, medium size narrow beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with narrow beam distribution. Class III electrical.. DALI dimmable Remote LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +40°C. Complete with 4000K LED..

Dimensions: 130 x 130 x 135 mm
Luminaire input power: 7.1 W
Luminaire luminous flux: 495 lm
Luminaire efficacy: 70 lm/W
Weight: 1.73 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • SC3
