  • Axyl Opera — AXYL OPERA M WO 4L 930 NB HF ANT

Axyl Opera / AXYL OPERA M WO 4L 930 NB HF ANT

96700825

▼ Datasheet

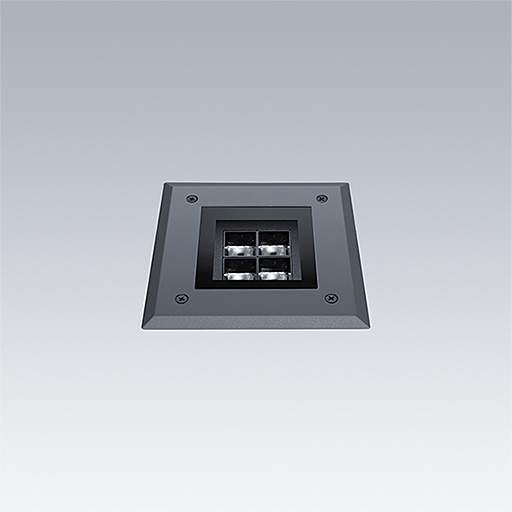

Axyl Opera, medium size narrow beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with narrow beam distribution. Class I electrical.. Fixed output LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +45°C. Complete with 3000K LED..

Dimensions: 135 x 135 x 135 mm
Luminaire input power: 7.1 W
Luminaire luminous flux: 485 lm
Luminaire efficacy: 68 lm/W
Weight: 1.66 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • Protection Class 1

    ▼ Fotometria

    Configurazione fotometrica

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Passo 1: Dati tecnici
    (lm)
    (m)
    (m)
    (%)
    Passo 2: Dati sullo spazio
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
