  • Axyl Opera — AXYL OPERA M WO 4L 927 AS RD ANT

Axyl Opera / AXYL OPERA M WO 4L 927 AS RD ANT

96701791

▼ Datasheet

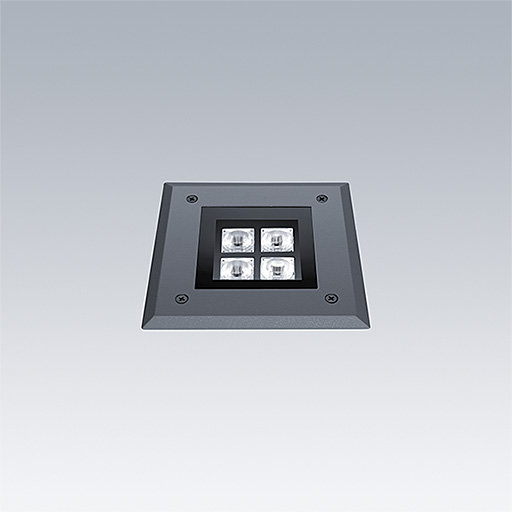

Axyl Opera, medium size asymmetric beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class III electrical.. DALI-2 dimmable Remote LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..

Dimensions: 135 x 135 x 135 mm
Luminaire input power: 7.1 W
Luminaire luminous flux: 449 lm
Luminaire efficacy: 63 lm/W
Weight: 1.64 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • SC3

    ▼ Fotometria

    Configurazione fotometrica

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Passo 1: Dati tecnici
    (lm)
    (m)
    (m)
    (%)
    Passo 2: Dati sullo spazio
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
