  • Axyl Opera — AXYL OPERA L WO 1L 930 MB HFX GY

Axyl Opera / AXYL OPERA L WO 1L 930 MB HFX GY

96700944

▼ Datasheet

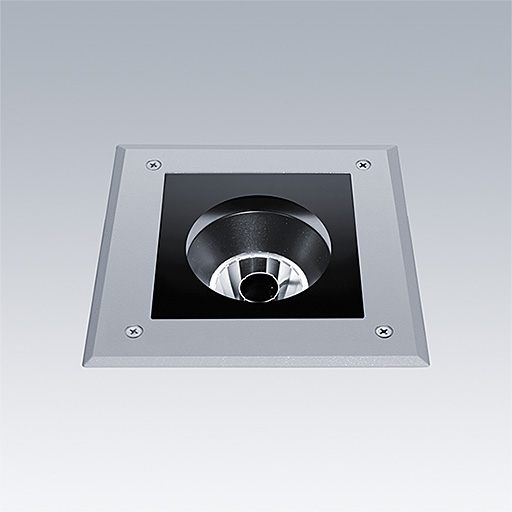

Axyl Opera, large size medium beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with medium beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +45°C. Complete with 3000K LED..

Dimensions: 210 x 210 x 135 mm
Luminaire input power: 15.2 W
Luminaire luminous flux: 972 lm
Luminaire efficacy: 64 lm/W
Weight: 3.43 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • Protection Class 1
