  • Axyl Opera — AXYL OPERA XL WO 16L 930 NB HFX BK

Axyl Opera / AXYL OPERA XL WO 16L 930 NB HFX BK

96701071

▼ Datasheet

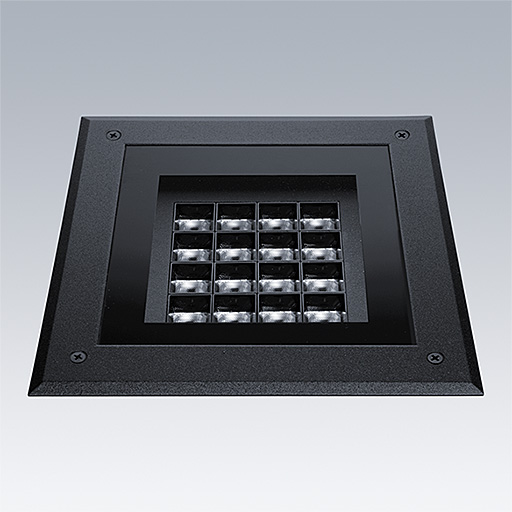

Axyl Opera, extra-large size narrow beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with narrow beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +45°C. Complete with 3000K LED..

Dimensions: 280 x 280 x 245 mm
Luminaire input power: 33 W
Luminaire luminous flux: 2412 lm
Luminaire efficacy: 73 lm/W
Weight: 7.31 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • Protection Class 1

    ▼ Fotometria

    Configurazione fotometrica

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Passo 1: Dati tecnici
    (lm)
    (m)
    (m)
    (%)
    Passo 2: Dati sullo spazio
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
