  • Axyl Opera — AXYL OPERA XL WO 1L 940 MB HFX GY

Axyl Opera / AXYL OPERA XL WO 1L 940 MB HFX GY

96701092

▼ Datasheet

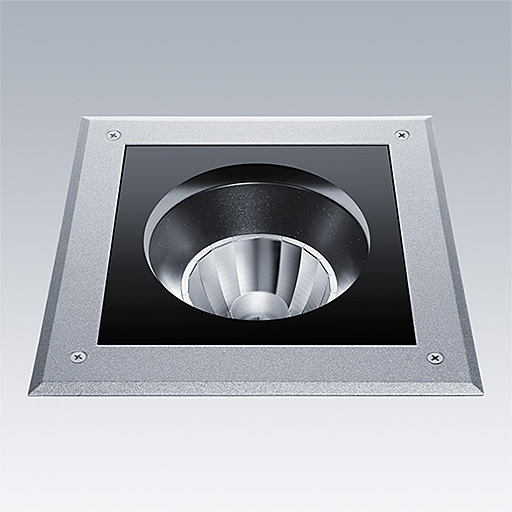

Axyl Opera, extra-large size medium beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with medium beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +40°C. Complete with 4000K LED..

Dimensions: 280 x 280 x 245 mm
Luminaire input power: 33.2 W
Luminaire luminous flux: 2787 lm
Luminaire efficacy: 84 lm/W
Weight: 6.15 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • Protection Class 1

    ▼ Fotometria

    Configurazione fotometrica

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Passo 1: Dati tecnici
    (lm)
    (m)
    (m)
    (%)
    Passo 2: Dati sullo spazio
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
