  • Axyl Opera — AXYL OPERA XL WO 30L 930 WB HFX SS

Axyl Opera / AXYL OPERA XL WO 30L 930 WB HFX SS

96701061

▼ Datasheet

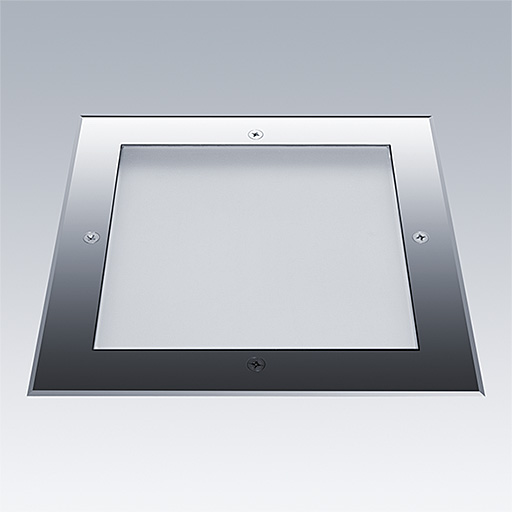

Axyl Opera, extra-large size wide beam (frosted), a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED..

Dimensions: 275 x 275 x 245 mm
Luminaire input power: 11.1 W
Luminaire luminous flux: 288 lm
Luminaire efficacy: 26 lm/W
Weight: 6.29 kg

Seleziona modalità
    • CE
    • IK09
    • IP67
    • Protection Class 1
