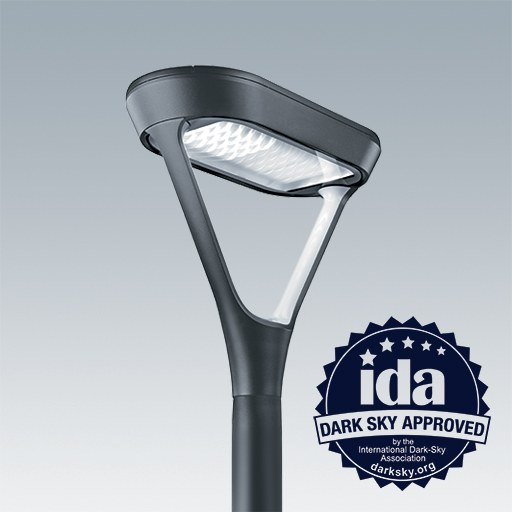

Urba Deco
Illuminazione urbana architetturale smart e sofisticata
- Forma unica e sofisticata
- Equilibrio tra prestazione e comfort
- 25 distribuzioni luminose e cinque opzioni di montaggio la rendono estremamente versatile nelle diverse esigenze progettuali
- Leggerezza e pre-cablaggio per una facile installazione e manutenzione senza utensili
Materiali
Corpo e base: alluminio pressofuso (AS9U3, LM24 equivalente, EN AC-46000) nero sabbiato simile al RAL 9005
Vetro: trasparente o prismatico, spessore 6mm
Bracci: alluminio pressofuso nero sabbiato simile al RAL 9005, coperto con uno schermo bianco o nero in plastica ASA
Installazione e Montaggio
Idonea per montaggio testapalo, catenaria, sospensione e parete. Altezza di montaggio raccomandata: testapalo da 3 a 6m, sospensione da 3 a 8m, catenaria da 5 a 8m.
Testapalo: montaggio su attacco/pali Ø60mm o Ø76mm, con 2 viti (Allen 4). Manutenzione con accesso dall'alto. Versioni pre-cablate (6m), fornite complete e pronte da installare, in un singolo imballo.
Catenaria e sospensione: fissaggio tramite attacco 34G, manutenzione con accesso dal basso.
Pali dedicati e bracci disponibili.
Specifiche
Ulteriori specifiche sono disponibili tramite il referente THORN di zona o compilando il modulo di contatto (http://www.thornlighting.it/it-it/contact-us)
- New Product
New Product
LumExpress Product
eControl Product
▼ Urba Deco, MTP 250mA, ottica PWC (Pedestrian walkway and cycle path), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 PWC-S CL CL1 6M MTP60-L | 20 | 2153 | LED | 7.50 | 96272785 | ||||
| UD 24L25-730 PWC-S CL CL1 6M MTP60-T | 20 | 2153 | LED | 7.50 | 96272784 | ||||
| UD 24L25-730 PWC-S CL CL2 6M MTP60-L | 20 | 2153 | LED | 7.50 | 96272890 | ||||
| UD 24L25-730 PWC-S CL CL2 6M MTP60-T | 20 | 2153 | LED | 7.50 | 96272889 | ||||
| UD 24L25-740 PWC-S CL CL1 6M MTP60-L | 20 | 2370 | LED | 7.50 | 96272995 | ||||
| UD 24L25-740 PWC-S CL CL1 6M MTP60-T | 20 | 2370 | LED | 7.50 | 96272994 | ||||
| UD 24L25-740 PWC-S CL CL2 6M MTP60-L | 20 | 2370 | LED | 7.50 | 96273104 | ||||
| UD 24L25-740 PWC-S CL CL2 6M MTP60-T | 20 | 2370 | LED | 7.50 | 96273103 |
▼ Urba Deco, MTP 500mA, ottica PWC (Pedestrian walkway and cycle path), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 PWC-S CL CL1 6M MTP60-L | 38 | 3938 | LED | 7.50 | 96272789 | ||||
| UD 24L50-730 PWC-S CL CL1 6M MTP60-T | 38 | 3938 | LED | 7.50 | 96272788 | ||||
| UD 24L50-730 PWC-S CL CL2 6M MTP60-L | 38 | 3938 | LED | 7.50 | 96272894 | ||||
| UD 24L50-730 PWC-S CL CL2 6M MTP60-T | 38 | 3938 | LED | 7.50 | 96272893 | ||||
| UD 24L50-740 PWC-S CL CL1 6M MTP60-L | 38 | 4333 | LED | 7.50 | 96272999 | ||||
| UD 24L50-740 PWC-S CL CL1 6M MTP60-T | 38 | 4333 | LED | 7.50 | 96272998 | ||||
| UD 24L50-740 PWC-S CL CL2 6M MTP60-L | 38 | 4333 | LED | 7.50 | 96273108 | ||||
| UD 24L50-740 PWC-S CL CL2 6M MTP60-T | 38 | 4333 | LED | 7.50 | 96273107 |
▼ Urba Deco, MTP 250mA, ottica PWC (Pedestrian walkway and cycle path), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 PWC-A CL CL1 6M MTP60-L | 20 | 2153 | LED | 7.50 | 96272791 | ||||
| UD 24L25-730 PWC-A CL CL1 6M MTP60-T | 20 | 2153 | LED | 7.50 | 96272790 | ||||
| UD 24L25-730 PWC-A CL CL2 6M MTP60-L | 20 | 2153 | LED | 7.50 | 96272896 | ||||
| UD 24L25-730 PWC-A CL CL2 6M MTP60-T | 20 | 2153 | LED | 7.50 | 96272895 | ||||
| UD 24L25-740 PWC-A CL CL1 6M MTP60-L | 20 | 2370 | LED | 7.50 | 96273001 | ||||
| UD 24L25-740 PWC-A CL CL1 6M MTP60-T | 20 | 2370 | LED | 7.50 | 96273000 | ||||
| UD 24L25-740 PWC-A CL CL2 6M MTP60-L | 20 | 2370 | LED | 7.50 | 96273110 | ||||
| UD 24L25-740 PWC-A CL CL2 6M MTP60-T | 20 | 2370 | LED | 7.50 | 96273109 |
▼ Urba Deco, MTP 500mA, ottica PWC (Pedestrian walkway and cycle path), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 PWC-A CL CL1 6M MTP60-L | 38 | 3938 | LED | 7.50 | 96272795 | ||||
| UD 24L50-730 PWC-A CL CL1 6M MTP60-T | 38 | 3938 | LED | 7.50 | 96272794 | ||||
| UD 24L50-730 PWC-A CL CL2 6M MTP60-L | 38 | 3938 | LED | 7.50 | 96272900 | ||||
| UD 24L50-730 PWC-A CL CL2 6M MTP60-T | 38 | 3938 | LED | 7.50 | 96272899 | ||||
| UD 24L50-740 PWC-A CL CL1 6M MTP60-L | 38 | 4333 | LED | 7.50 | 96273005 | ||||
| UD 24L50-740 PWC-A CL CL1 6M MTP60-T | 38 | 4333 | LED | 7.50 | 96273004 | ||||
| UD 24L50-740 PWC-A CL CL2 6M MTP60-L | 38 | 4333 | LED | 7.50 | 96273114 | ||||
| UD 24L50-740 PWC-A CL CL2 6M MTP60-T | 38 | 4333 | LED | 7.50 | 96273113 |
▼ Urba Deco, MTP 500mA, ottica WS (Wide Street), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WS-S CL CL1 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96272798 | ||||
| UD 24L50-730 WS-S CL CL2 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96272903 | ||||
| UD 24L50-740 WS-S CL CL1 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96273008 | ||||
| UD 24L50-740 WS-S CL CL2 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96273117 |
▼ Urba Deco, MTP 500mA, ottica WS (Wide Street), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WS-A CL CL1 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96272802 | ||||
| UD 24L50-730 WS-A CL CL2 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96272907 | ||||
| UD 24L50-740 WS-A CL CL1 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96273012 | ||||
| UD 24L50-740 WS-A CL CL2 6M MTP60-T | 38 | 4281 | LED | 7.50 | 96273121 |
▼ Urba Deco, MTP 250mA CL, ottica WSC (Wide Street Comfort), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-S CL CL1 6M MTP60-L | 20 | 2102 | LED | 7.50 | 96272805 | ||||
| UD 24L25-730 WSC-S CL CL1 6M MTP60-T | 20 | 2102 | LED | 7.50 | 96272804 | ||||
| UD 24L25-730 WSC-S CL CL2 6M MTP60-L | 20 | 2102 | LED | 7.50 | 96272910 | ||||
| UD 24L25-730 WSC-S CL CL2 6M MTP60-T | 20 | 2102 | LED | 7.50 | 96272909 | ||||
| UD 24L25-740 WSC-S CL CL1 6M MTP60-L | 20 | 2313 | LED | 7.50 | 96273015 | ||||
| UD 24L25-740 WSC-S CL CL1 6M MTP60-T | 20 | 2313 | LED | 7.50 | 96273014 | ||||
| UD 24L25-740 WSC-S CL CL2 6M MTP60-L | 20 | 2313 | LED | 7.50 | 96273124 | ||||
| UD 24L25-740 WSC-S CL CL2 6M MTP60-T | 20 | 2313 | LED | 7.50 | 96273123 |
▼ Urba Deco, MTP 250mA PR, ottica WSC (Wide Street Comfort), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-S PR CL1 6M MTP60-L | 20 | 1583 | LED | 7.50 | 96273960 | ||||
| UD 24L25-730 WSC-S PR CL1 6M MTP60-T | 20 | 1583 | LED | 7.50 | 96272826 | ||||
| UD 24L25-730 WSC-S PR CL1 6M MTP76-L | 20 | 1583 | LED | 7.85 | 96273964 | ||||
| UD 24L25-730 WSC-S PR CL2 6M MTP60-L | 20 | 1583 | LED | 7.50 | 96273961 | ||||
| UD 24L25-730 WSC-S PR CL2 6M MTP60-T | 20 | 1583 | LED | 7.50 | 96272931 | ||||
| UD 24L25-740 WSC-S PR CL1 6M MTP60-L | 20 | 1741 | LED | 7.50 | 96273962 | ||||
| UD 24L25-740 WSC-S PR CL1 6M MTP60-T | 20 | 1741 | LED | 7.50 | 96273036 | ||||
| UD 24L25-740 WSC-S PR CL1 6M MTP76-L | 20 | 1741 | LED | 7.85 | 96273966 | ||||
| UD 24L25-740 WSC-S PR CL2 6M MTP60-L | 20 | 1741 | LED | 7.50 | 96273963 | ||||
| UD 24L25-740 WSC-S PR CL2 6M MTP60-T | 20 | 1741 | LED | 7.50 | 96273145 |
▼ Urba Deco, MTP 350mA PR, ottica WSC (Wide Street Comfort), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L35-730 WSC-S PR CL1 6M MTP60-T | 51 | 4264 | LED | 7.50 | 96272829 | ||||
| UD 48L35-730 WSC-S PR CL2 6M MTP60-T | 51 | 4264 | LED | 7.50 | 96272934 | ||||
| UD 48L35-740 WSC-S PR CL1 6M MTP60-T | 51 | 4692 | LED | 7.50 | 96273039 | ||||
| UD 48L35-740 WSC-S PR CL2 6M MTP60-T | 51 | 4692 | LED | 7.50 | 96273148 |
▼ Urba Deco, MTP 500mA CL, ottica WSC (Wide Street Comfort), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WSC-S CL CL1 6M MTP60-L | 38 | 3843 | LED | 7.50 | 96272809 | ||||
| UD 24L50-730 WSC-S CL CL1 6M MTP60-T | 38 | 3843 | LED | 7.50 | 96272808 | ||||
| UD 24L50-730 WSC-S CL CL2 6M MTP60-L | 38 | 3843 | LED | 7.50 | 96272914 | ||||
| UD 24L50-730 WSC-S CL CL2 6M MTP60-T | 38 | 3843 | LED | 7.50 | 96272913 | ||||
| UD 24L50-740 WSC-S CL CL1 6M MTP60-L | 38 | 4229 | LED | 7.50 | 96273019 | ||||
| UD 24L50-740 WSC-S CL CL1 6M MTP60-T | 38 | 4229 | LED | 7.50 | 96273018 | ||||
| UD 24L50-740 WSC-S CL CL2 6M MTP60-L | 38 | 4229 | LED | 7.50 | 96273128 | ||||
| UD 24L50-740 WSC-S CL CL2 6M MTP60-T | 38 | 4229 | LED | 7.50 | 96273127 |
▼ Urba Deco, MTP 500mA PR, ottica WSC (Wide Street Comfort), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WSC-S PR CL1 6M MTP60-L | 38 | 2894 | LED | 7.50 | 96273976 | ||||
| UD 24L50-730 WSC-S PR CL1 6M MTP60-T | 38 | 2894 | LED | 7.50 | 96272828 | ||||
| UD 24L50-730 WSC-S PR CL1 6M MTP76-L | 38 | 2894 | LED | 7.85 | 96273980 | ||||
| UD 24L50-730 WSC-S PR CL2 6M MTP60-L | 38 | 2894 | LED | 7.50 | 96273977 | ||||
| UD 24L50-730 WSC-S PR CL2 6M MTP60-T | 38 | 2894 | LED | 7.50 | 96272933 | ||||
| UD 24L50-740 WSC-S PR CL1 6M MTP60-L | 38 | 3185 | LED | 7.50 | 96273978 | ||||
| UD 24L50-740 WSC-S PR CL1 6M MTP60-T | 38 | 3185 | LED | 7.50 | 96273038 | ||||
| UD 24L50-740 WSC-S PR CL1 6M MTP76-L | 38 | 3185 | LED | 7.85 | 96273982 | ||||
| UD 24L50-740 WSC-S PR CL2 6M MTP60-L | 38 | 3185 | LED | 7.50 | 96273979 | ||||
| UD 24L50-740 WSC-S PR CL2 6M MTP60-T | 38 | 3185 | LED | 7.50 | 96273147 |
▼ Urba Deco, MTP 250mA CL, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-A CL CL1 6M MTP60-L | 20 | 2102 | LED | 7.50 | 96272811 | ||||
| UD 24L25-730 WSC-A CL CL1 6M MTP60-T | 20 | 2102 | LED | 7.50 | 96272810 | ||||
| UD 24L25-730 WSC-A CL CL2 6M MTP60-L | 20 | 2102 | LED | 7.50 | 96272916 | ||||
| UD 24L25-730 WSC-A CL CL2 6M MTP60-T | 20 | 2102 | LED | 7.50 | 96272915 | ||||
| UD 24L25-740 WSC-A CL CL1 6M MTP60-L | 20 | 2313 | LED | 7.50 | 96273021 | ||||
| UD 24L25-740 WSC-A CL CL1 6M MTP60-T | 20 | 2313 | LED | 7.50 | 96273020 | ||||
| UD 24L25-740 WSC-A CL CL2 6M MTP60-L | 20 | 2313 | LED | 7.50 | 96273130 | ||||
| UD 24L25-740 WSC-A CL CL2 6M MTP60-T | 20 | 2313 | LED | 7.50 | 96273129 |
▼ Urba Deco, MTP 250mA PR, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-A PR CL1 6M MTP60-T | 20 | 1583 | LED | 7.50 | 96272830 | ||||
| UD 24L25-730 WSC-A PR CL1 6M MTP76-L | 20 | 1583 | LED | 7.85 | 96273972 | ||||
| UD 24L25-730 WSC-A PR CL2 6M MTP60-L | 20 | 1583 | LED | 7.50 | 96273969 | ||||
| UD 24L25-730 WSC-A PR CL2 6M MTP60-T | 20 | 1583 | LED | 7.50 | 96272935 | ||||
| UD 24L25-740 WSC-A PR CL1 6M MTP60-L | 20 | 1741 | LED | 7.50 | 96273970 | ||||
| UD 24L25-740 WSC-A PR CL1 6M MTP76-L | 20 | 1741 | LED | 7.85 | 96273974 | ||||
| UD 24L25-740 WSC-A PR CL2 6M MTP60-L | 20 | 1741 | LED | 7.50 | 96273971 | ||||
| UD 24L25-740 WSC-A PR CL2 6M MTP60-T | 20 | 1741 | LED | 7.50 | 96273149 |
▼ Urba Deco, MTP 350mA PR, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L35-730 WSC-A PR CL1 6M MTP60-T | 51 | 4264 | LED | 7.50 | 96272833 | ||||
| UD 48L35-730 WSC-A PR CL2 6M MTP60-T | 51 | 4264 | LED | 7.50 | 96272938 | ||||
| UD 48L35-740 WSC-A PR CL1 6M MTP60-T | 51 | 4692 | LED | 7.50 | 96273043 | ||||
| UD 48L35-740 WSC-A PR CL2 6M MTP60-T | 51 | 4692 | LED | 7.50 | 96273152 |
▼ Urba Deco, MTP 500mA CL, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WSC-A CL CL1 6M MTP60-L | 38 | 3843 | LED | 7.50 | 96272815 | ||||
| UD 24L50-730 WSC-A CL CL1 6M MTP60-T | 38 | 3843 | LED | 7.50 | 96272814 | ||||
| UD 24L50-730 WSC-A CL CL2 6M MTP60-L | 38 | 3843 | LED | 7.50 | 96272920 | ||||
| UD 24L50-730 WSC-A CL CL2 6M MTP60-T | 38 | 3843 | LED | 7.50 | 96272919 | ||||
| UD 24L50-740 WSC-A CL CL1 6M MTP60-L | 38 | 4229 | LED | 7.50 | 96273025 | ||||
| UD 24L50-740 WSC-A CL CL1 6M MTP60-T | 38 | 4229 | LED | 7.50 | 96273024 | ||||
| UD 24L50-740 WSC-A CL CL2 6M MTP60-L | 38 | 4229 | LED | 7.50 | 96273134 | ||||
| UD 24L50-740 WSC-A CL CL2 6M MTP60-T | 38 | 4229 | LED | 7.50 | 96273133 |
▼ Urba Deco, MTP 500mA PR, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WSC-A PR CL1 6M MTP60-L | 38 | 2894 | LED | 7.50 | 96273984 | ||||
| UD 24L50-730 WSC-A PR CL1 6M MTP60-T | 38 | 2894 | LED | 7.50 | 96272832 | ||||
| UD 24L50-730 WSC-A PR CL1 6M MTP76-L | 38 | 2894 | LED | 7.85 | 96273988 | ||||
| UD 24L50-730 WSC-A PR CL2 6M MTP60-L | 38 | 2894 | LED | 7.50 | 96273985 | ||||
| UD 24L50-730 WSC-A PR CL2 6M MTP60-T | 38 | 2894 | LED | 7.50 | 96272937 | ||||
| UD 24L50-740 WSC-A PR CL1 6M MTP60-L | 38 | 3185 | LED | 7.50 | 96273986 | ||||
| UD 24L50-740 WSC-A PR CL1 6M MTP60-T | 38 | 3185 | LED | 7.50 | 96273042 | ||||
| UD 24L50-740 WSC-A PR CL1 6M MTP76-L | 38 | 3185 | LED | 7.85 | 96273990 | ||||
| UD 24L50-740 WSC-A PR CL2 6M MTP60-L | 38 | 3185 | LED | 7.50 | 96273987 | ||||
| UD 24L50-740 WSC-A PR CL2 6M MTP60-T | 38 | 3185 | LED | 7.50 | 96273151 |
▼ Urba Deco, MTP 500mA, ottica EWSC (Extra Wide Street Comfort), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L50-730 EWSC-S CL CL1 6M MTP60-T | 72 | 7713 | LED | 7.50 | 96272816 | ||||
| UD 48L50-730 EWSC-S CL CL2 6M MTP60-T | 72 | 7713 | LED | 7.50 | 96272921 | ||||
| UD 48L50-740 EWSC-S CL CL1 6M MTP60-T | 72 | 8487 | LED | 7.50 | 96273026 | ||||
| UD 48L50-740 EWSC-S CL CL2 6M MTP60-T | 72 | 8487 | LED | 7.50 | 96273135 |
▼ Urba Deco, MTP 500mA, ottica EWSC (Extra Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L50-730 EWSC-A CL CL1 6M MTP60-T | 72 | 7713 | LED | 7.50 | 96272817 | ||||
| UD 48L50-730 EWSC-A CL CL2 6M MTP60-T | 72 | 7713 | LED | 7.50 | 96272922 | ||||
| UD 48L50-740 EWSC-A CL CL1 6M MTP60-T | 72 | 8487 | LED | 7.50 | 96273027 | ||||
| UD 48L50-740 EWSC-A CL CL2 6M MTP60-T | 72 | 8487 | LED | 7.50 | 96273136 |
▼ Urba Deco, MTP 500mA, ottica EWR (Extra Wide Road), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 EWR-S CL CL1 6M MTP60-T | 38 | 3986 | LED | 7.50 | 96272818 | ||||
| UD 24L50-730 EWR-S CL CL2 6M MTP60-T | 38 | 3986 | LED | 7.50 | 96272923 | ||||
| UD 24L50-740 EWR-S CL CL2 6M MTP60-T | 38 | 4386 | LED | 7.50 | 96273137 |
▼ Urba Deco, MTP 500mA, ottica EWR (Extra Wide Road), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 EWR-A CL CL1 6M MTP60-T | 38 | 3986 | LED | 7.50 | 96272819 | ||||
| UD 24L50-730 EWR-A CL CL2 6M MTP60-T | 38 | 3986 | LED | 7.50 | 96272924 | ||||
| UD 24L50-740 EWR-A CL CL1 6M MTP60-T | 38 | 4386 | LED | 7.50 | 96273029 | ||||
| UD 24L50-740 EWR-A CL CL2 6M MTP60-T | 38 | 4386 | LED | 7.50 | 96273138 |
▼ Urba Deco, MTP 350mA, ottica SC (Street Comfort), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L35-730 SC-S CL CL1 6M MTP60-T | 51 | 5871 | LED | 7.50 | 96272824 | ||||
| UD 48L35-730 SC-S CL CL2 6M MTP60-T | 51 | 5871 | LED | 7.50 | 96272929 | ||||
| UD 48L35-740 SC-S CL CL1 6M MTP60-T | 51 | 6460 | LED | 7.00 | 96273034 | ||||
| UD 48L35-740 SC-S CL CL2 6M MTP60-T | 51 | 6460 | LED | 7.50 | 96273143 |
▼ Urba Deco, MTP 350mA, ottica SC (Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L35-730 SC-A CL CL1 6M MTP60-T | 51 | 5871 | LED | 7.50 | 96272825 | ||||
| UD 48L35-730 SC-A CL CL2 6M MTP60-T | 51 | 5871 | LED | 7.50 | 96272930 | ||||
| UD 48L35-740 SC-A CL CL1 6M MTP60-T | 51 | 6460 | LED | 7.50 | 96273035 | ||||
| UD 48L35-740 SC-A CL CL2 6M MTP60-T | 51 | 6460 | LED | 7.50 | 96273144 |
▼ Urba Deco, MTP 500mA, ottica SC (Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 SC-A CL CL1 6M MTP60-T | 38 | 3986 | LED | 7.50 | 96272823 | ||||
| UD 24L50-730 SC-A CL CL2 6M MTP60-T | 38 | 3986 | LED | 7.50 | 96272928 | ||||
| UD 24L50-740 SC-A CL CL1 6M MTP60-T | 38 | 4386 | LED | 7.50 | 96273033 | ||||
| UD 24L50-740 SC-A CL CL2 6M MTP60-T | 38 | 4386 | LED | 7.50 | 96273142 |
▼ Urba Deco, MSU 250mA, ottica PWC (Pedestrian walkway and cycle path), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 PWC-A CL CL1 MSU-T | 20 | 2153 | LED | 6.70 | 96272855 | ||||
| UD 24L25-730 PWC-A CL CL2 MSU-T | 20 | 2153 | LED | 6.70 | 96272960 | ||||
| UD 24L25-740 PWC-A CL CL1 MSU-T | 20 | 2370 | LED | 6.70 | 96273069 | ||||
| UD 24L25-740 PWC-A CL CL2 MSU-T | 20 | 2370 | LED | 6.70 | 96273178 |
▼ Urba Deco, MSU 500mA, ottica PWC (Pedestrian walkway and cycle path), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 PWC-A CL CL1 MSU-T | 38 | 3938 | LED | 6.70 | 96272857 | ||||
| UD 24L50-730 PWC-A CL CL2 MSU-T | 38 | 3938 | LED | 6.70 | 96272962 | ||||
| UD 24L50-740 PWC-A CL CL1 MSU-T | 38 | 4333 | LED | 6.70 | 96273071 | ||||
| UD 24L50-740 PWC-A CL CL2 MSU-T | 38 | 4333 | LED | 6.70 | 96273180 |
▼ Urba Deco, MSU 500mA, ottica WS (Wide Street), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WS-A CL CL1 MSU-T | 38 | 4128 | LED | 6.70 | 96272861 | ||||
| UD 24L50-730 WS-A CL CL2 MSU-T | 38 | 4128 | LED | 6.70 | 96272966 | ||||
| UD 24L50-740 WS-A CL CL1 MSU-T | 38 | 4542 | LED | 6.70 | 96273075 | ||||
| UD 24L50-740 WS-A CL CL2 MSU-T | 38 | 4542 | LED | 6.70 | 96273184 |
▼ Urba Deco, MSU 250mA CL, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-A CL CL1 MSU-T | 20 | 2257 | LED | 6.70 | 96272864 | ||||
| UD 24L25-730 WSC-A CL CL2 MSU-T | 20 | 2257 | LED | 6.70 | 96272969 | ||||
| UD 24L25-740 WSC-A CL CL1 MSU-T | 20 | 2484 | LED | 6.70 | 96273078 | ||||
| UD 24L25-740 WSC-A CL CL2 MSU-T | 20 | 2484 | LED | 6.70 | 96273187 |
▼ Urba Deco, MSU 250mA PR, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-A PR CL1 MSU-T | 20 | 1686 | LED | 6.70 | 96272879 | ||||
| UD 24L25-730 WSC-A PR CL2 MSU-T | 20 | 1686 | LED | 6.70 | 96272984 | ||||
| UD 24L25-740 WSC-A PR CL1 MSU-T | 20 | 1856 | LED | 6.70 | 96273093 | ||||
| UD 24L25-740 WSC-A PR CL2 MSU-T | 20 | 1856 | LED | 6.70 | 96273202 |
▼ Urba Deco, MSU 350mA PR, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L35-730 WSC-A PR CL1 MSU-T | 51 | 4543 | LED | 6.70 | 96272881 | ||||
| UD 48L35-730 WSC-A PR CL2 MSU-T | 51 | 4543 | LED | 6.70 | 96272986 | ||||
| UD 48L35-740 WSC-A PR CL1 MSU-T | 51 | 4999 | LED | 6.70 | 96273095 | ||||
| UD 48L35-740 WSC-A PR CL2 MSU-T | 51 | 4999 | LED | 6.70 | 96273204 |
▼ Urba Deco, MSU 500mA PR, ottica WSC (Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WSC-A PR CL1 MSU-T | 38 | 3084 | LED | 6.70 | 96272880 | ||||
| UD 24L50-730 WSC-A PR CL2 MSU-T | 38 | 3084 | LED | 6.70 | 96272985 | ||||
| UD 24L50-740 WSC-A PR CL1 MSU-T | 38 | 3393 | LED | 6.70 | 96273094 | ||||
| UD 24L50-740 WSC-A PR CL2 MSU-T | 38 | 3393 | LED | 6.70 | 96273203 |
▼ Urba Deco, MSU 500mA, ottica EWSC (Extra Wide Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L50-730 EWSC-A CL CL1 MSU-T | 72 | 8189 | LED | 6.70 | 96272869 | ||||
| UD 48L50-730 EWSC-A CL CL2 MSU-T | 72 | 8189 | LED | 6.70 | 96272974 | ||||
| UD 48L50-740 EWSC-A CL CL1 MSU-T | 72 | 9011 | LED | 6.70 | 96273083 | ||||
| UD 48L50-740 EWSC-A CL CL2 MSU-T | 72 | 9011 | LED | 6.70 | 96273192 |
▼ Urba Deco, MSU 500mA, ottica EWR (Extra Wide Road), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 EWR-A CL CL1 MSU-T | 38 | 4223 | LED | 6.70 | 96272871 | ||||
| UD 24L50-730 EWR-A CL CL2 MSU-T | 38 | 4223 | LED | 6.70 | 96272976 | ||||
| UD 24L50-740 EWR-A CL CL1 MSU-T | 38 | 4647 | LED | 6.70 | 96273085 | ||||
| UD 24L50-740 EWR-A CL CL2 MSU-T | 38 | 4647 | LED | 6.70 | 96273194 |
▼ Urba Deco, MSU 500mA, ottica SC (Street Comfort), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 SC-A CL CL1 MSU-T | 38 | 4270 | LED | 6.70 | 96272875 | ||||
| UD 24L50-730 SC-A CL CL2 MSU-T | 38 | 4270 | LED | 6.70 | 96272980 | ||||
| UD 24L50-740 SC-A CL CL1 MSU-T | 38 | 4669 | LED | 6.70 | 96273089 | ||||
| UD 24L50-740 SC-A CL CL2 MSU-T | 38 | 4669 | LED | 6.70 | 96273198 |
▼ Urba Deco, MSU 500mA, ottica NR (Narrow Road), Asimmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 48L50-740 NR-A CL CL2 1M IN MSU-T | 72 | 9221 | LED | 7.00 | 96273992 |
▼ Urba Deco, MCA 500mA, ottica NR (Narrow Road), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 NR-S CL CL1 MCA-T | 38 | 4175 | LED | 7.00 | 96272882 | ||||
| UD 24L50-740 NR-S CL CL1 MCA-T | 38 | 4594 | LED | 7.00 | 96273096 | ||||
| UD 48L50-730 NR-S CL CL1 MCA-T | 72 | 8379 | LED | 7.00 | 96272883 | ||||
| UD 48L50-740 NR-S CL CL1 MCA-T | 72 | 9221 | LED | 7.00 | 96273097 |
▼ Urba Deco, MCA 500mA, ottica RWET (Wet Road), Simmetrica
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 RWET-S CL CL1 MCA-T | 38 | 4123 | LED | 7.00 | 96272884 | ||||
| UD 24L50-730 RWET-S CL CL2 MCA-T | 38 | 4123 | LED | 7.00 | 96272989 | ||||
| UD 24L50-740 RWET-S CL CL1 MCA-T | 38 | 4542 | LED | 7.00 | 96273098 | ||||
| UD 48L50-730 RWET-S CL CL1 MCA-T | 72 | 8284 | LED | 7.00 | 96272885 | ||||
| UD 48L50-740 RWET-S CL CL1 MCA-T | 72 | 9116 | LED | 7.00 | 96273099 |
▼ Urba Deco Pali e Bracci
| Descrizione | Peso (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| UD MSU BRA 0.40M ST BK | 4.00 | 96273397 | |||||||
| UD MSU TOP BRA 0.56M ST BK | 6.50 | 96273396 | |||||||
| UD MSUx1 COL 3.5M ST BK MPL FAI | 55.50 | 96273389 | |||||||
| UD MSUx1 COL 4.5M ST BK MPL FAI | 69.00 | 96273391 | |||||||
| UD MSUx1 COL 4M ST BK MPL FAI | 62.50 | 96273390 | |||||||
| UD MSUx1 COL 5M ST BK MPL FAI | 76.00 | 96273392 | |||||||
| UD MSUx1 COL 6M ST BK MPL FAI | 90.00 | 96273394 | |||||||
| UD MSUx2 COL 5M ST BK MPL FAI | 76.50 | 96273393 | |||||||
| UD MSUx2 COL 6M ST BK MPL FAI | 90.50 | 96273395 | |||||||
| UD MTP COL 3.5M ST D60 BK MPL FAI | 32.50 | 96273384 | |||||||
| UD MTP COL 4.5M ST D60 BK MPL FAI | 40.00 | 96273386 | |||||||
| UD MTP COL 4M ST D60 BK MPL FAI | 36.50 | 96273385 | |||||||
| UD MTP COL 5M ST D60 BK MPL FAI | 45.50 | 96273387 | |||||||
| UD MTP COL 6M ST D60 BK MPL FAI | 58.00 | 96273388 | |||||||
| UD MWA BRA 0.20M ST BK | 2.50 | 96273398 | |||||||
| UD MWA BRA 0.40M ST BK | 3.45 | 96274360 | |||||||
| UD MWA BRA MTP ST BK | 4.05 | 96273942 | |||||||
| URBA COL 4M AL D76 BK | 45.50 | 96270903 | |||||||
| URBA COL 5M AL D76 BK | 48.75 | 96270904 | |||||||
| URBA COL 6M AL D76 BK | 0.00 | 96270905 |
