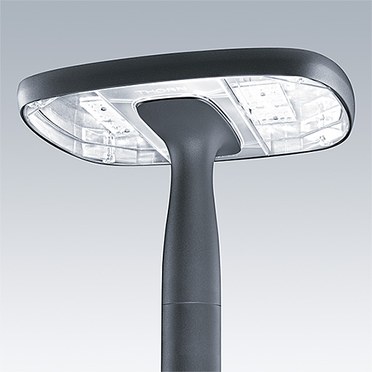

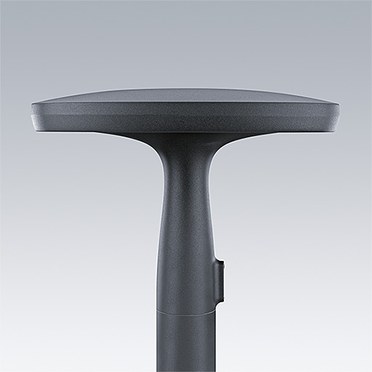

Studio dentistico Dr. Mauro GilioliArmatura a LED discreta e versatile per l’illuminazione urbana, con un veloce ritorno dell’investimento
- Testapalo a LED moderno, discreto e versatile facilmente integrabile nel paesaggio urbano e nelle aree residenziali
- 100.000 ore di durata senza manutenzione, un veloce ritorno dell’investimento e bassi costi di gestione
- ULOR0, conforme alle leggi regionali sull’inquinamento luminoso
- Due chiusure: trasparente per prestazione ottimale e diffusa per maggior comfort
Materiali
Corpo e base: alluminio pressofuso (EN AC-46100), verniciato a polveri grigio scuro (simile al RAL 7043) o grigio chiaro (simile al RAL 9006)
Chiusura piana: diffusore in policarbonato trasparente stabilizzato agli UV
Installazione e Montaggio
Altezza di montaggio: da 3 a 6m.
Distribuzione con schermo trasparente: simmetrico o asimmetrico (ottica stradale).
Distribuzione con schermo satinato: roto-simmetrico.
Montaggio testapalo su attacco/palo Ø60mm o Ø76mm. Altezza interna della base: 75mm.
Versione disponibile pre-cablato con 5 m di cavo.
Disponibile a richiesta versione HT per alte temperature e CON fornita con 1 m di cavo e connettore.
Specifiche
Ulteriori specifiche sono disponibili tramite il referente THORN di zona o compilando il modulo di contatto (http://www.thornlighting.it/it-it/contact-us)
New Product
LumExpress Product
eControl Product
▼ FleXity, ottica diffondente, 250mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L25-730 OP CL1 W5 D60 ANT | 20 | 1650 | LED | 4.50 | 96270775 | ||||
| FLEX 24L25-730 OP CL1 W5 D60 GY | 20 | 1650 | LED | 4.50 | 96642805 | ||||
| FLEX 24L25-730 OP CL1 W5 D76 ANT | 20 | 1650 | LED | 4.70 | 96270783 | ||||
| FLEX 24L25-730 OP CL1 W5 D76 GY | 20 | 1650 | LED | 4.70 | 96642813 | ||||
| FLEX 24L25-730 OP CL2 W5 D60 ANT | 20 | 1650 | LED | 4.50 | 96270771 | ||||
| FLEX 24L25-730 OP CL2 W5 D60 GY | 20 | 1650 | LED | 4.50 | 96642801 | ||||
| FLEX 24L25-730 OP CL2 W5 D76 ANT | 20 | 1650 | LED | 4.70 | 96270779 | ||||
| FLEX 24L25-730 OP CL2 W5 D76 GY | 20 | 1650 | LED | 4.70 | 96642809 | ||||
| FLEX 24L25-740 OP CL1 W5 D60 ANT | 20 | 1750 | LED | 4.50 | 96270776 | ||||
| FLEX 24L25-740 OP CL1 W5 D60 GY | 20 | 1750 | LED | 4.50 | 96642806 | ||||
| FLEX 24L25-740 OP CL1 W5 D76 ANT | 20 | 1750 | LED | 4.70 | 96270784 | ||||
| FLEX 24L25-740 OP CL1 W5 D76 GY | 20 | 1750 | LED | 4.70 | 96642814 | ||||
| FLEX 24L25-740 OP CL2 W5 D60 ANT | 20 | 1750 | LED | 4.50 | 96270772 | ||||
| FLEX 24L25-740 OP CL2 W5 D60 GY | 20 | 1750 | LED | 4.50 | 96642802 | ||||
| FLEX 24L25-740 OP CL2 W5 D76 ANT | 20 | 1750 | LED | 4.70 | 96270780 | ||||
| FLEX 24L25-740 OP CL2 W5 D76 GY | 20 | 1750 | LED | 4.70 | 96642810 |
▼ FleXity, ottica WSC (wide street comfort), simmetrica, 250mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L25-740 WSC-S CL2 W5 D60 ANT | 20 | 1950 | LED | 4.50 | 96271206 | ||||
| FLEX 24L25-730 WSC-S CL1 W5 D60 ANT | 20 | 1800 | LED | 4.50 | 96271207 | ||||
| FLEX 24L25-730 WSC-S CL1 W5 D60 GY | 20 | 1800 | LED | 4.50 | 96642878 | ||||
| FLEX 24L25-730 WSC-S CL1 W5 D76 ANT | 20 | 1800 | LED | 4.70 | 96271211 | ||||
| FLEX 24L25-730 WSC-S CL1 W5 D76 GY | 20 | 1800 | LED | 4.70 | 96642882 | ||||
| FLEX 24L25-730 WSC-S CL2 W5 D60 ANT | 20 | 1800 | LED | 4.50 | 96271205 | ||||
| FLEX 24L25-730 WSC-S CL2 W5 D60 GY | 20 | 1800 | LED | 4.50 | 96642876 | ||||
| FLEX 24L25-730 WSC-S CL2 W5 D76 ANT | 20 | 1800 | LED | 4.70 | 96271209 | ||||
| FLEX 24L25-730 WSC-S CL2 W5 D76 GY | 20 | 1800 | LED | 4.70 | 96642880 | ||||
| FLEX 24L25-740 WSC-S CL1 W5 D60 ANT | 20 | 1950 | LED | 4.50 | 96271208 | ||||
| FLEX 24L25-740 WSC-S CL1 W5 D60 GY | 20 | 1950 | LED | 4.50 | 96642879 | ||||
| FLEX 24L25-740 WSC-S CL1 W5 D76 ANT | 20 | 1950 | LED | 4.70 | 96271212 | ||||
| FLEX 24L25-740 WSC-S CL1 W5 D76 GY | 20 | 1950 | LED | 4.70 | 96642883 | ||||
| FLEX 24L25-740 WSC-S CL2 W5 D60 GY | 20 | 1950 | LED | 4.50 | 96642877 | ||||
| FLEX 24L25-740 WSC-S CL2 W5 D76 ANT | 20 | 1950 | LED | 4.70 | 96271210 | ||||
| FLEX 24L25-740 WSC-S CL2 W5 D76 GY | 20 | 1950 | LED | 4.70 | 96642881 |
▼ FleXity, ottica WSC (wide street comfort), simmetrica, 500mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L50-730 WSC-S CL1 W5 D60 ANT | 40 | 3350 | LED | 4.50 | 96270777 | ||||
| FLEX 24L50-730 WSC-S CL1 W5 D60 GY | 40 | 3350 | LED | 4.50 | 96642807 | ||||
| FLEX 24L50-730 WSC-S CL1 W5 D76 ANT | 40 | 3350 | LED | 4.70 | 96270785 | ||||
| FLEX 24L50-730 WSC-S CL1 W5 D76 GY | 40 | 3350 | LED | 4.70 | 96642815 | ||||
| FLEX 24L50-730 WSC-S CL2 W5 D60 ANT | 40 | 3350 | LED | 4.50 | 96270773 | ||||
| FLEX 24L50-730 WSC-S CL2 W5 D60 GY | 40 | 3350 | LED | 4.50 | 96642803 | ||||
| FLEX 24L50-730 WSC-S CL2 W5 D76 ANT | 40 | 3350 | LED | 4.70 | 96270781 | ||||
| FLEX 24L50-730 WSC-S CL2 W5 D76 GY | 40 | 3350 | LED | 4.70 | 96642811 | ||||
| FLEX 24L50-740 WSC-S CL1 W5 D60 ANT | 40 | 3600 | LED | 4.50 | 96270778 | ||||
| FLEX 24L50-740 WSC-S CL1 W5 D60 GY | 40 | 3600 | LED | 4.50 | 96642808 | ||||
| FLEX 24L50-740 WSC-S CL1 W5 D76 ANT | 40 | 3600 | LED | 4.70 | 96270786 | ||||
| FLEX 24L50-740 WSC-S CL1 W5 D76 GY | 40 | 3600 | LED | 4.70 | 96642816 | ||||
| FLEX 24L50-740 WSC-S CL2 W5 D60 ANT | 40 | 3600 | LED | 4.50 | 96270774 | ||||
| FLEX 24L50-740 WSC-S CL2 W5 D60 GY | 40 | 3600 | LED | 4.50 | 96642804 | ||||
| FLEX 24L50-740 WSC-S CL2 W5 D76 ANT | 40 | 3600 | LED | 4.70 | 96270782 | ||||
| FLEX 24L50-740 WSC-S CL2 W5 D76 GY | 40 | 3600 | LED | 4.70 | 96642812 |
▼ FleXity, ottica WSC (wide street comfort), simmetrica, 500mA, bi-potenza
▼ FleXity, ottica WSC (wide street comfort), simmetrica, 1050mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L105-730 WSC-S CL1 W5 D60 ANT | 83 | 6100 | LED | 4.50 | 96271117 | ||||
| FLEX 24L105-730 WSC-S CL1 W5 D60 GY | 83 | 6100 | LED | 4.50 | 96642851 | ||||
| FLEX 24L105-730 WSC-S CL1 W5 D76 ANT | 83 | 6100 | LED | 4.70 | 96271121 | ||||
| FLEX 24L105-730 WSC-S CL1 W5 D76 GY | 83 | 6100 | LED | 4.70 | 96642855 | ||||
| FLEX 24L105-730 WSC-S CL2 W5 D60 ANT | 83 | 6100 | LED | 4.50 | 96271109 | ||||
| FLEX 24L105-730 WSC-S CL2 W5 D60 GY | 83 | 6100 | LED | 4.50 | 96642843 | ||||
| FLEX 24L105-730 WSC-S CL2 W5 D76 ANT | 83 | 6100 | LED | 4.70 | 96271113 | ||||
| FLEX 24L105-730 WSC-S CL2 W5 D76 GY | 83 | 6100 | LED | 4.70 | 96642847 | ||||
| FLEX 24L105-740 WSC-S CL1 W5 D60 ANT | 83 | 6550 | LED | 4.50 | 96271118 | ||||
| FLEX 24L105-740 WSC-S CL1 W5 D60 GY | 83 | 6550 | LED | 4.50 | 96642852 | ||||
| FLEX 24L105-740 WSC-S CL1 W5 D76 ANT | 83 | 6550 | LED | 4.70 | 96271122 | ||||
| FLEX 24L105-740 WSC-S CL1 W5 D76 GY | 83 | 6550 | LED | 4.70 | 96642856 | ||||
| FLEX 24L105-740 WSC-S CL2 W5 D60 ANT | 83 | 6550 | LED | 4.50 | 96271110 | ||||
| FLEX 24L105-740 WSC-S CL2 W5 D60 GY | 83 | 6550 | LED | 4.50 | 96642844 | ||||
| FLEX 24L105-740 WSC-S CL2 W5 D76 ANT | 83 | 6550 | LED | 4.70 | 96271114 | ||||
| FLEX 24L105-740 WSC-S CL2 W5 D76 GY | 83 | 6550 | LED | 4.70 | 96642848 |
▼ FleXity, ottica WSC (wide street comfort), simmetrica, 1050mA, bi-potenza
▼ FleXity, ottica WSC (wide street comfort), asimmetrica, 250mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L25-730 WSC-A CL1 W5 D60 ANT | 20 | 1900 | LED | 4.50 | 96271223 | ||||
| FLEX 24L25-730 WSC-A CL1 W5 D60 GY | 20 | 1900 | LED | 4.50 | 96642886 | ||||
| FLEX 24L25-730 WSC-A CL1 W5 D76 ANT | 20 | 1900 | LED | 4.70 | 96271227 | ||||
| FLEX 24L25-730 WSC-A CL1 W5 D76 GY | 20 | 1900 | LED | 4.70 | 96642890 | ||||
| FLEX 24L25-730 WSC-A CL2 W5 D60 ANT | 20 | 1900 | LED | 4.50 | 96271221 | ||||
| FLEX 24L25-730 WSC-A CL2 W5 D60 GY | 20 | 1900 | LED | 4.50 | 96642884 | ||||
| FLEX 24L25-730 WSC-A CL2 W5 D76 ANT | 20 | 1900 | LED | 4.70 | 96271225 | ||||
| FLEX 24L25-730 WSC-A CL2 W5 D76 GY | 20 | 1900 | LED | 4.70 | 96642888 | ||||
| FLEX 24L25-740 WSC-A CL1 W5 D60 ANT | 20 | 2000 | LED | 4.50 | 96271224 | ||||
| FLEX 24L25-740 WSC-A CL1 W5 D60 GY | 20 | 2000 | LED | 4.50 | 96642887 | ||||
| FLEX 24L25-740 WSC-A CL1 W5 D76 ANT | 20 | 2000 | LED | 4.70 | 96271228 | ||||
| FLEX 24L25-740 WSC-A CL1 W5 D76 GY | 20 | 2000 | LED | 4.70 | 96642891 | ||||
| FLEX 24L25-740 WSC-A CL2 W5 D60 ANT | 20 | 2000 | LED | 4.50 | 96271222 | ||||
| FLEX 24L25-740 WSC-A CL2 W5 D60 GY | 20 | 2000 | LED | 4.50 | 96642885 | ||||
| FLEX 24L25-740 WSC-A CL2 W5 D76 ANT | 20 | 2000 | LED | 4.70 | 96271226 | ||||
| FLEX 24L25-740 WSC-A CL2 W5 D76 GY | 20 | 2000 | LED | 4.70 | 96642889 |
▼ FleXity, ottica WSC (wide street comfort), asimmetrica, 500mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L50-730 WSC-A CL1 W5 D60 ANT | 40 | 3500 | LED | 4.50 | 96270789 | ||||
| FLEX 24L50-730 WSC-A CL1 W5 D60 GY | 40 | 3500 | LED | 4.50 | 96642819 | ||||
| FLEX 24L50-730 WSC-A CL1 W5 D76 ANT | 40 | 3350 | LED | 4.70 | 96270793 | ||||
| FLEX 24L50-730 WSC-A CL1 W5 D76 GY | 40 | 3350 | LED | 4.70 | 96642823 | ||||
| FLEX 24L50-730 WSC-A CL2 W5 D60 ANT | 40 | 3500 | LED | 4.50 | 96270787 | ||||
| FLEX 24L50-730 WSC-A CL2 W5 D60 GY | 40 | 3500 | LED | 4.50 | 96642817 | ||||
| FLEX 24L50-730 WSC-A CL2 W5 D76 ANT | 40 | 3500 | LED | 4.70 | 96270791 | ||||
| FLEX 24L50-730 WSC-A CL2 W5 D76 GY | 40 | 3500 | LED | 4.70 | 96642821 | ||||
| FLEX 24L50-740 WSC-A CL1 W5 D60 ANT | 40 | 3800 | LED | 4.50 | 96270790 | ||||
| FLEX 24L50-740 WSC-A CL1 W5 D60 GY | 40 | 3800 | LED | 4.50 | 96642820 | ||||
| FLEX 24L50-740 WSC-A CL1 W5 D76 ANT | 40 | 3800 | LED | 4.70 | 96270794 | ||||
| FLEX 24L50-740 WSC-A CL1 W5 D76 GY | 40 | 3800 | LED | 4.70 | 96642824 | ||||
| FLEX 24L50-740 WSC-A CL2 W5 D60 ANT | 40 | 3800 | LED | 4.50 | 96270788 | ||||
| FLEX 24L50-740 WSC-A CL2 W5 D60 GY | 40 | 3800 | LED | 4.50 | 96642818 | ||||
| FLEX 24L50-740 WSC-A CL2 W5 D76 ANT | 40 | 3800 | LED | 4.70 | 96270792 | ||||
| FLEX 24L50-740 WSC-A CL2 W5 D76 GY | 40 | 3800 | LED | 4.70 | 96642822 |
▼ FleXity, ottica WSC (wide street comfort), asimmetrica, 500mA, bi-potenza
▼ FleXity, ottica WSC (wide street comfort), asimmetrica, 1050mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L105-730 WSC-A CL1 W5 D60 ANT | 83 | 6400 | LED | 4.50 | 96271133 | ||||
| FLEX 24L105-730 WSC-A CL1 W5 D60 GY | 83 | 6400 | LED | 4.50 | 96642867 | ||||
| FLEX 24L105-730 WSC-A CL1 W5 D76 ANT | 83 | 6400 | LED | 4.70 | 96271137 | ||||
| FLEX 24L105-730 WSC-A CL1 W5 D76 GY | 83 | 6400 | LED | 4.70 | 96642871 | ||||
| FLEX 24L105-730 WSC-A CL2 W5 D60 ANT | 83 | 6400 | LED | 4.50 | 96271125 | ||||
| FLEX 24L105-730 WSC-A CL2 W5 D60 GY | 83 | 6400 | LED | 4.50 | 96642859 | ||||
| FLEX 24L105-730 WSC-A CL2 W5 D76 ANT | 83 | 6400 | LED | 4.70 | 96271129 | ||||
| FLEX 24L105-730 WSC-A CL2 W5 D76 GY | 83 | 6400 | LED | 4.70 | 96642863 | ||||
| FLEX 24L105-740 WSC-A CL1 W5 D60 ANT | 83 | 6900 | LED | 4.50 | 96271134 | ||||
| FLEX 24L105-740 WSC-A CL1 W5 D60 GY | 83 | 6900 | LED | 4.50 | 96642868 | ||||
| FLEX 24L105-740 WSC-A CL1 W5 D76 ANT | 83 | 6900 | LED | 4.70 | 96271138 | ||||
| FLEX 24L105-740 WSC-A CL1 W5 D76 GY | 83 | 6900 | LED | 4.70 | 96642872 | ||||
| FLEX 24L105-740 WSC-A CL2 W5 D60 ANT | 83 | 6900 | LED | 4.50 | 96271126 | ||||
| FLEX 24L105-740 WSC-A CL2 W5 D60 GY | 83 | 6900 | LED | 4.50 | 96642860 | ||||
| FLEX 24L105-740 WSC-A CL2 W5 D76 ANT | 83 | 6900 | LED | 4.70 | 96271130 | ||||
| FLEX 24L105-740 WSC-A CL2 W5 D76 GY | 83 | 6900 | LED | 4.70 | 96642864 |
▼ FleXity, ottica WSC (wide street comfort), asimmetrica, 1050mA, bi-potenza
▼ FleXity, ottica EWR (Extra Wide Road), asimmetrica, 250mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L25-740 EWR-A CL1 CON D60 ANT | 20 | 2150 | LED | 4.50 | 96627907 | ||||
| FLEX 24L25-740 EWR-A CL1 CON D60 GY | 20 | 2150 | LED | 4.50 | 96642898 |
▼ FleXity, ottica EWR (Extra Wide Road), asimmetrica, 500mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L50-740 EWR-A CL1 CON D60 ANT | 40 | 4000 | LED | 4.50 | 96627904 | ||||
| FLEX 24L50-740 EWR-A CL1 CON D60 GY | 40 | 4000 | LED | 4.50 | 96642895 |
▼ FleXity, ottica EWR (Extra Wide Road), asimmetrica, 700mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L70-740 EWR-A CL1 CON D60 ANT | 54 | 5300 | LED | 4.50 | 96627905 | ||||
| FLEX 24L70-740 EWR-A CL1 CON D60 GY | 54 | 5300 | LED | 4.50 | 96642896 |
▼ FleXity, ottica EWR (Extra Wide Road), asimmetrica, 1050mA
| Descrizione | Potenza apparecchio (W) | Output apparecchio (lm) | Type | Peso (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L105-740 EWR-A CL1 CON D60 ANT | 83 | 7250 | LED | 4.50 | 96627906 | ||||
| FLEX 24L105-740 EWR-A CL1 CON D60 GY | 83 | 7250 | LED | 4.50 | 96642897 |
